The survey object was an industrial area in Kyiv, which included multiple industrial facilities with infrastructure. The total project area exceeded 10 hectares.
The purpose of the project was the digital transformation of the industrial area to create a topographic plan and 3D modeling as a basis for design solutions.
Initial Data & Project Timeline:
The initial data provided by the client were the boundaries of the scanning object
The scanning process took 10 days, and the processing of the acquired data and delivery of the final materials to the client took 2 months.
Complexity:
The complexity of the project was determined by the large survey area, busy traffic intensity, and significant obstacles that posed challenges for the reliable operation of the quadcopter..
ScanX specialists have successfully implemented numerous projects of varying complexity, utilizing a wide range of equipment and technologies. We invite you to explore the advantages of laser scanning, the stages of work execution, and the results achieved through a real-life example.
Equipment:

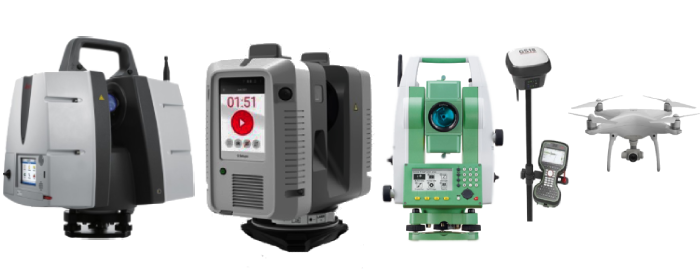

Ground-based laser 3D scanners: Leica P30 and RTC360, manufactured by Leica Geosystems.
Electronic total station: Leica TCRP 1205 1''.
GNSS receiver: Leica GS18.
Drone: DJI Phantom 4 PRO quadcopter.
Data Processing and Software:
Leica Cyclone
Autodesk Revit, AutoCAD
Project Stages

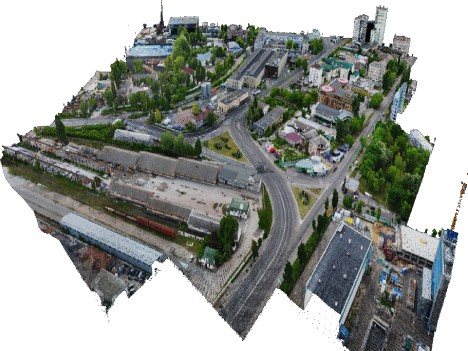

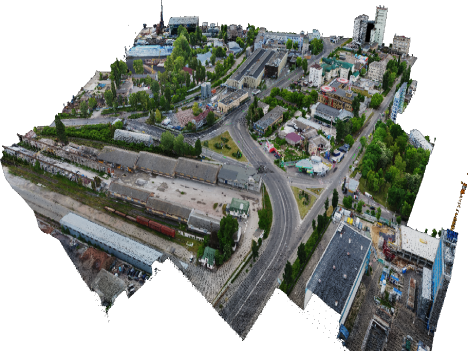

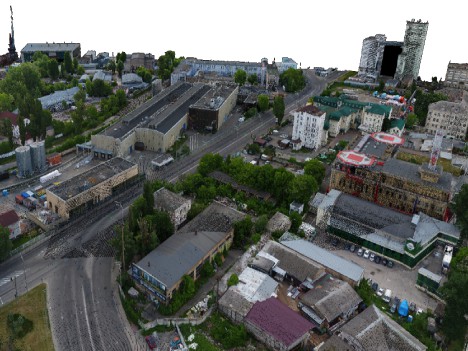

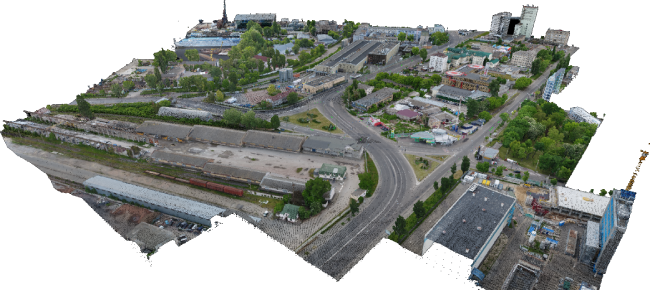

In the first stage of the project, laser scanning was conducted, and a temporary planimetric and height geodetic network was established. The data from the scans were stitched together in the urban coordinate system, resulting in a comprehensive point cloud of the object and the surrounding area. Over 300 scanner stations were used to ensure a highly detailed and informative point cloud, with a data stitching error of no more than 3 mm.

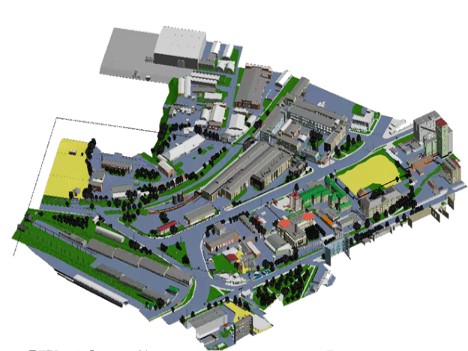

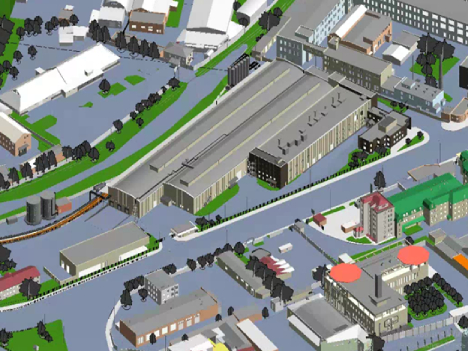

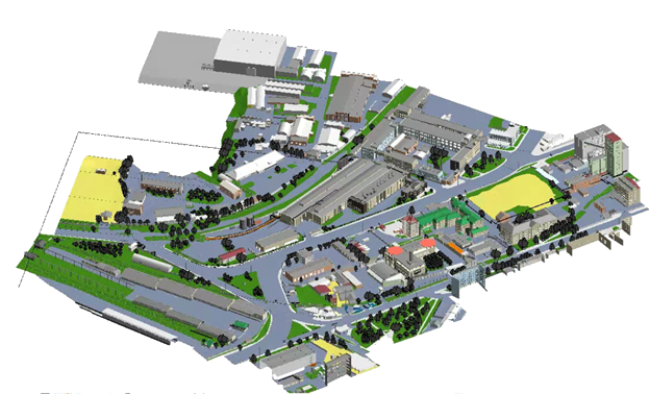

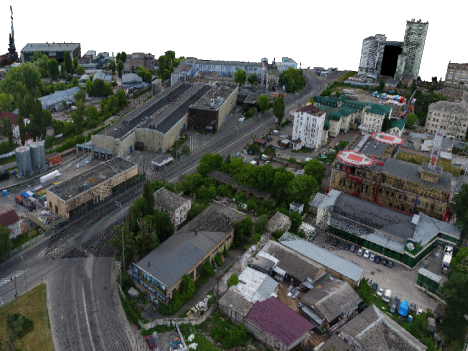

The second stage of the project involved cleaning the point cloud from noise and obstacles using powerful software for laser scanning data processing. Additionally, based on the point cloud, a topographic-geodetic plan and a 3D model of the object were created for the client's requirements.
Results
The task assigned to our team was completed within the timeframe specified by the client. We delivered the point cloud, topographic-geodetic plan, and 3D model of the object to the client. The data is presented in the following formats:
Point Cloud: *.e57 and *.rcp formats.

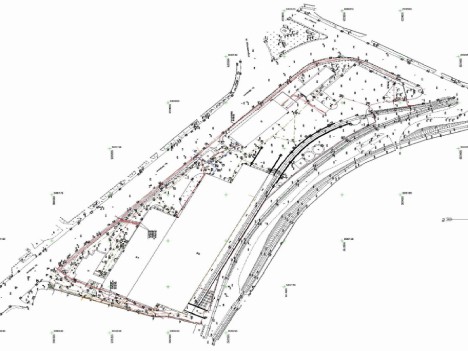

Drawings: *.dwg (AutoCAD) format.
PDF: *.pdf format for easy viewing and sharing of the drawings.
Customer Testimonial:
The team successfully delivered accurate point clouds, topographic plans, and 3D models in the specified timeframe. Impressed with their professionalism and high-quality deliverables
